- Place of Origin: shanghai
- Brand Name: Shanghai panhui Machinery
- Model Number: PH-300B

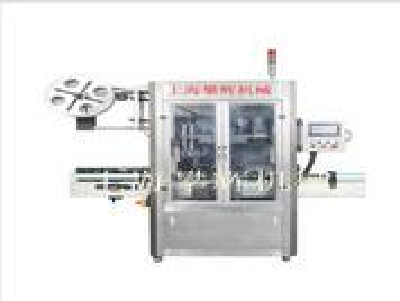

PH-300B full automatic set of standard features: the positioning of the central guide post: to make the label delivery more stable.
Adjustable cutter head: original rotary cutting, double blade long life.
Brush: use stickers brush, make the label accurate.
Synchronous bottle opener: to make the bottle delivery more stable, and so on, and so on.
Label control electric eye frame: the unique combination of tail and electric eye, improve the film cutting accuracy.
Human computer interface control box: to make the operation more humane,
Host: stainless steel full face design, beautiful appearance, safe operation, waterproof, rust.
Electrical configuration instructions:
Using PLC programmable controller, imported servo driver, frequency converter and sensor, in addition to the
The positioning module makes the set standard more accurate, fast and stable.
Suitable bottle type:
3.0KW such as round bottle, square bottle, flat bottle, typomorphic, curve bottles of various special-shaped bottle. PH-300B sets of automatic labeling machine technical parameters: input power
Input voltage: Phi 3.380/220VAC
The production efficiency: 300-350 bottle / min
The host size: 2100L*1050W*2000H
The application of bottle diameter: Phi 26- Phi 130
The label length: 30MM-260MM
The application of label thickness: 0.03MM-0.13MM
The machine weight: 350KG
