- Place of Origin: shanghai
- Brand Name: Shanghai panhui Machinery
- Model Number: PHS-3510G

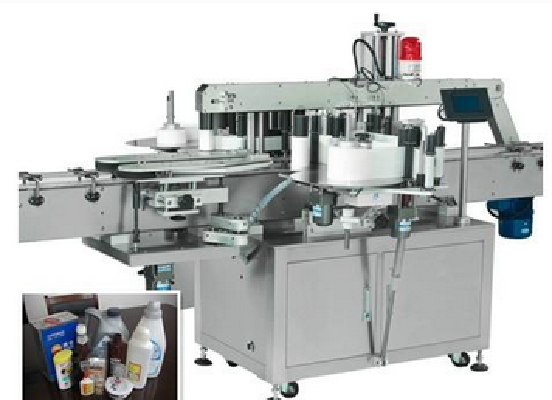

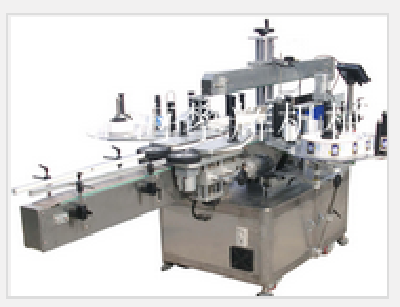

PHS-3510G high-speed double labeling machine features: - high speed servo double labeling machine applicable to flat, square or irregular, containers, also posted before and after attached
Two labels, and can choose one side or double side stickers.
According to the need of the products can be installed in a printer or printer.
- can work independently, or connect to the conveyor line.
Exergy visible on customer needs to install a round bottle bodies. PHS-3510G high-speed double labeling machine characteristics: - the whole machine for SUS304 stainless steel and high alloy made.
In the labeling head adopt imported high speed servo motor, ensure that the labeling speed and accuracy.
All - photoelectric and control system are used in Germany, Japan and Taiwan imported high-end products.
With PLC control interface, operation simple. PHS-3510G high-speed double labeling machine technical parameters: - machine size: 2800 (L) x 1650 (W) x 1500 (H) mm
Labeling speed: 60-150pcs/min - (as the size of the bottle, label the length of specific circumstances)
Height: 30-350mm - labeling
- labeling thickness: 20-120mm
- label height: 5-180mm
Label - Length: 25-300mm
- labeling accuracy: 1mm (except the bottle and label error)
- roll diameter: 76mm
Roll diameter: - 380mm
Power supply: 50/60HZ 3.5KW - phase 220V
In the printer with the source: 5Kg/c machine weight: 450Kg square meters.
