- Place of Origin: jinan China
- Brand Name: Shanghai panhui Machinery
- Model Number: PHY-100

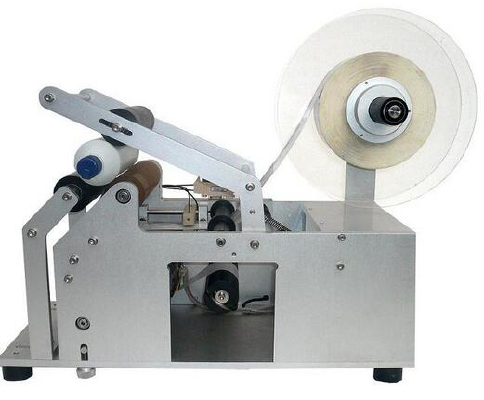

PHY-100 semi automatic round bottle labeling machine features: suitable for PET bottles, plastic bottles, glass bottles, bottles and other round bottle labeling; suitable for cosmetics, beverages, food, medicine and other industries, greatly improve the productivity and quality of labeling;
Wide application range, can meet 30-100mm diameter cylinder labeling; special bottle machine need custom; labeling of high precision and label head and tail connected local deviation is equal to or less than 0.5mm;
The extrusion feeding device, only need to put the workpiece automatically labeling; clamping type adjustment, simple work pieces of different labeling switching; synchronous belt traction, mechanical stability is greatly improved.
Desktop design, simplified structure, compact, powerful; anodic alumina alloy stents and stainless steel electric box, beautiful and generous; using advanced electric eye, tag detection sensitivity.
PHY-100 semi automatic round bottle labeling machine parameters: - labeling accuracy: 0.5mm (excluding tags workpiece error)
- speed: 25-50 / minute (depending on the size of the workpiece)
Label - od: 320mm
- roll diameter: 76mm
- workpiece size: 25-150mm diameter (special can be customized)
